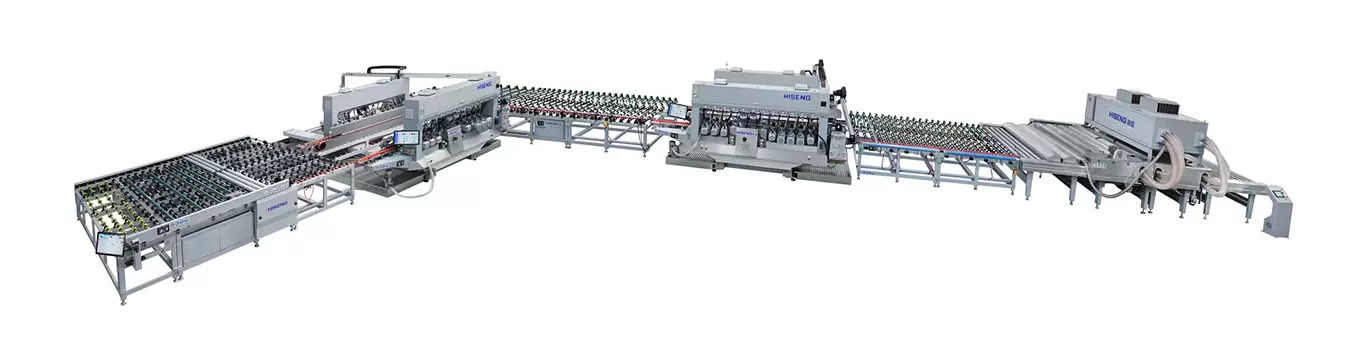

HISENG glass double edger machine is suitable for flat glass straight line grinding, Rough grinding, fine grinding and polishing. This double edger can install Low e film removal wheel or Corner cut wheel as option. It is suitable for architectural glass, bathroom, furniture glass, laminated glass, walls, LOW-E glass, and home appliances glass industry glass processing, with stable and reliable performance.
| JCT-4225 | HSDN | HSDN | LST-4225 | |
| Processing size | 300-4200mm | HSDN-2225 300-2500mm HSDN-2242 400-4200mm | HSDN-2425 400-2500mm HSDN-2445 400-4500mm | 300-4200mm |
| Thickness of glass | 3-25mm | 3-25mm | 3-25mm | 3-25mm |
| Transmission speed | 30m/min | 25m/min | 25m/min | 30m/min |
| Size Change Speed | / | 1-10m/min | 1-10m/min | / |
| Glass Parallel Tolerance | / | ≤0.2mm/m | ≤0.2mm/m | / |
| Glass Diagonal Tolerance | / | ≤0.5mm/m | ≤0.5mm/m | / |
| Chamfer Tolerance | / | ≤0.2mm/m | ≤0.2mm/m | / |
| Chamfer width | / | 1-3mm | 1-3mm | / |
| Max Grinding on flat edge | / | 5mm | 5mm | / |
| Air required | 0.6-0.8mpa | 0.6-0.8mpa | 0.6-0.8mpa | 0.6-0.8mpa |
| Work Height | 900±20mm | 900±20mm | 900~960mm | 900±20mm |
| Total Power | 4.6KW | 4.6KW |

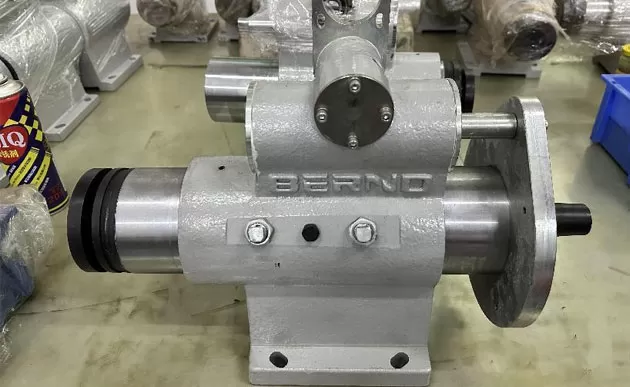

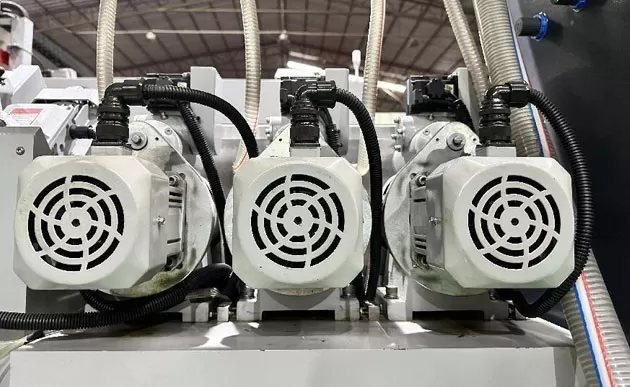

Hiseng's patented design separates the motor from the grinding shaft, fixing it to the machine frame to reduce vibration. Unlike traditional sliding-board motors that cause wheel shake, this structure isolates the motor from grinding impacts. The dedicated grinding shaft minimizes edge marks, improves polishing, and extends motor life.
The shaft uses special cast iron housing for durability and precision. Copper made worm wheel and gear system ensures stable operation. This separated design prevents motor overheating.

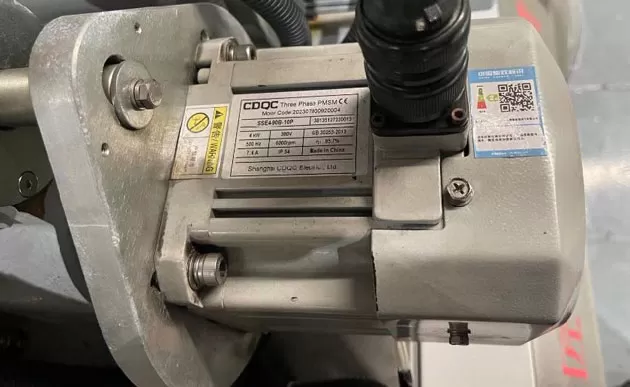

Energy-saving permanent magnet motors (optional) save 15-20% power compared to standard motors, reaching 5000 RPM. Users can freely switch between standard and permanent magnet motors as needed.

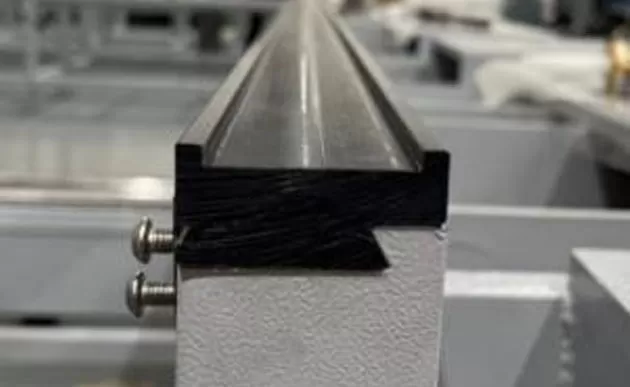

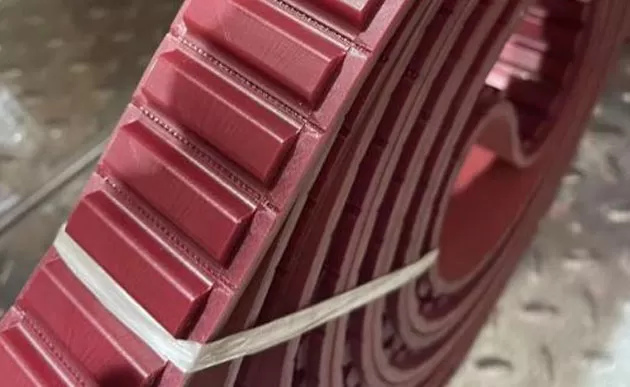

Featuring a patented dovetail design polymer timing belt guide, it installs with 9 million high polymer PU for precision and durability. The one-piece molding ensures straight guidance and reduces belt wear.

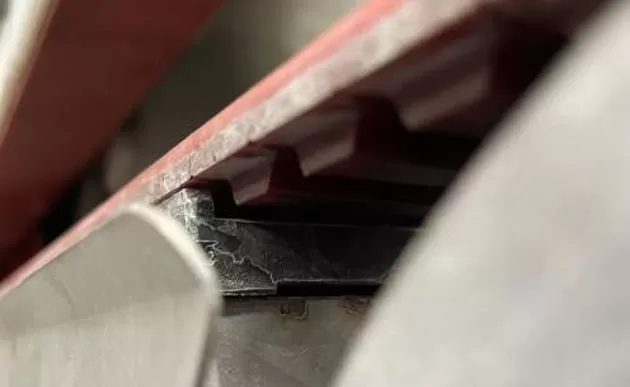

The T-shaped design of the timing belt prevents glass powder from entering the guide rail and reducing rail wear.

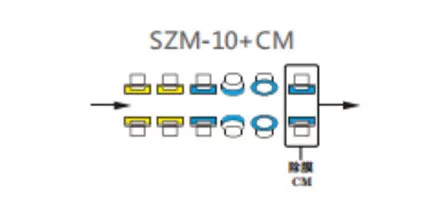

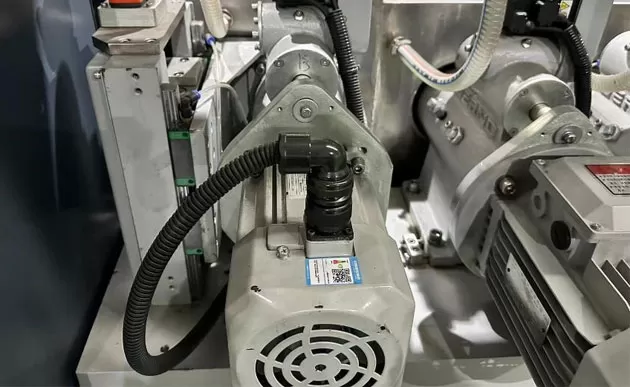

The last wheel can do Low-E deletion and polishing with a simple wheel change, featuring the specific motor (1,430/3,300 RPM) for flexible operation. You can easily switch through the screen.

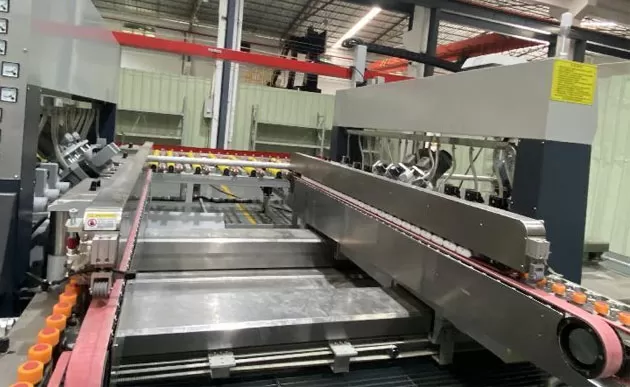

The four-column servo structure ensures stable thickness adjustment, with the pressure beam extendable up to 120mm guarantees precision.
4+2 servo motors drive the lifting mechanism, ensuring faster, more precise thickness and angle adjustments—the highest specification in its class.

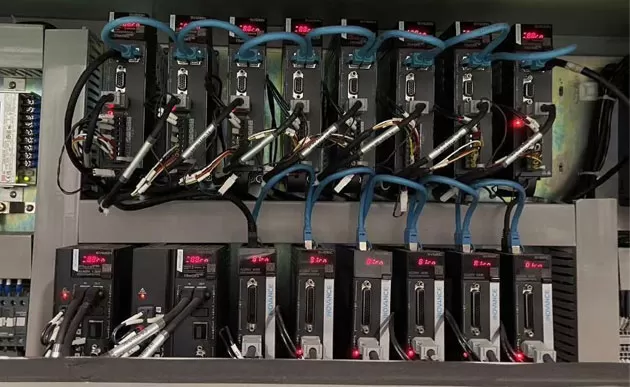

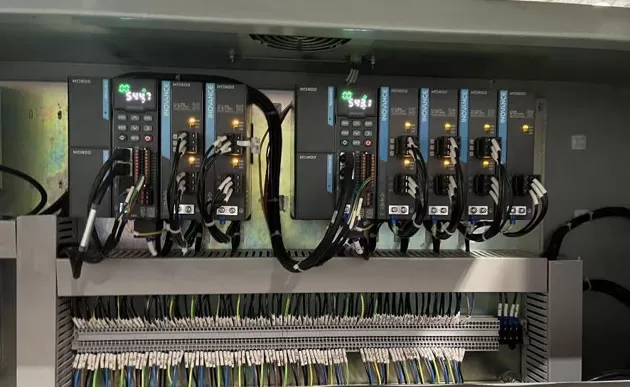

Featuring the latest Inovance MD800 VFD technology, each motor operates independently for smoother performance. The system enables automated control, real-time motor monitoring, and data analysis via central computer integration.

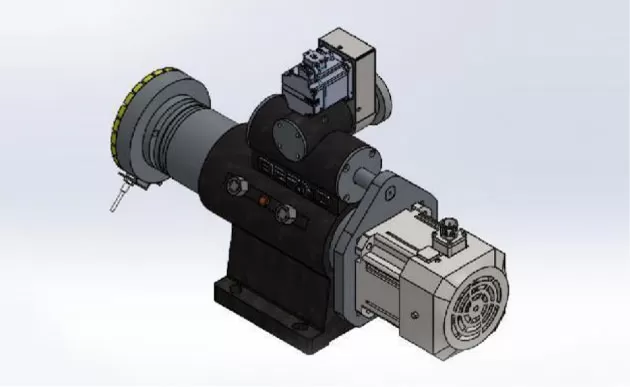

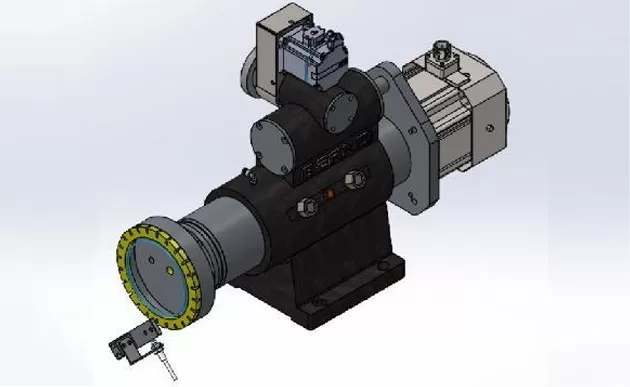

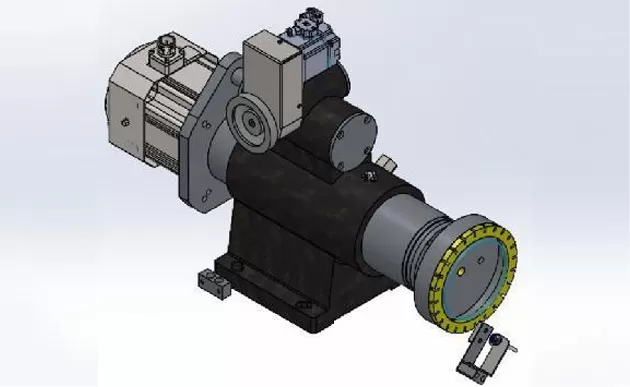

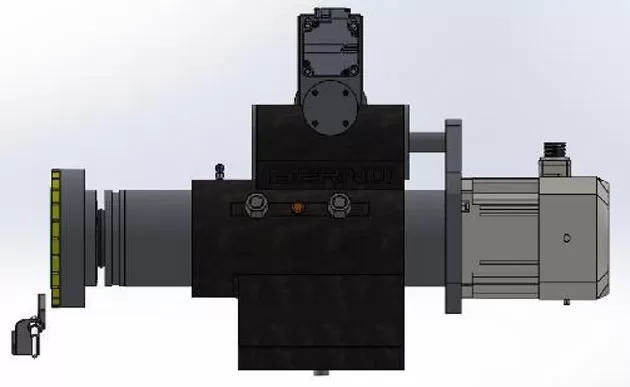

The grinding amount can be set from the screen. It is installed with a position switch to detect the zero point, which is more accurate than the traditional one. The current data of the polishing wheel is directly recorded by VFD, reducing interruption, ensuring high precision and long service life of the polishing wheels.
Electrical current is displayed and recorded directly on the touch screen through data transfer, not via variable frequency drive, ensuring accurate and timely readings without an ampere meter.
The system enters sleep mode after the setting time and features smart alarms for breakdowns and wheel changes. Ready to connect with upstream and downstream equipment, ERP, and MES systems, it also offers optional online remote monitoring and fault repair.
