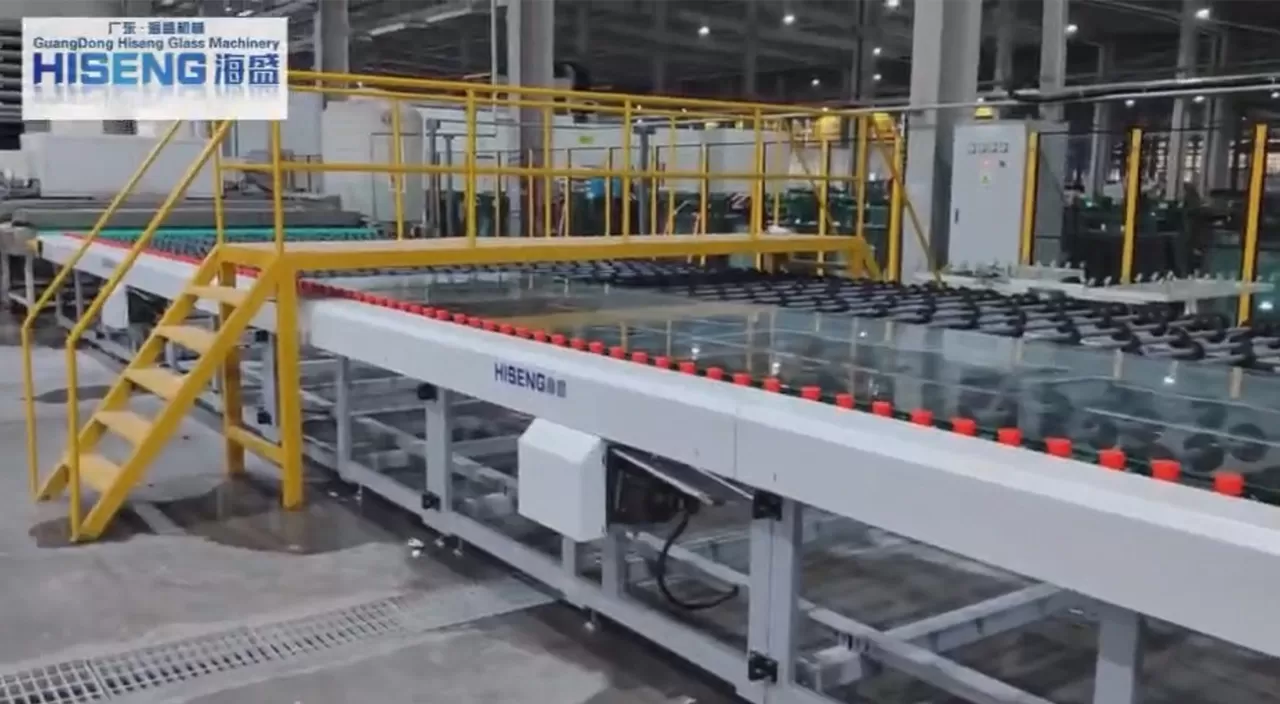

3. Flexible matching with double edger, it can fit any customer's factory.

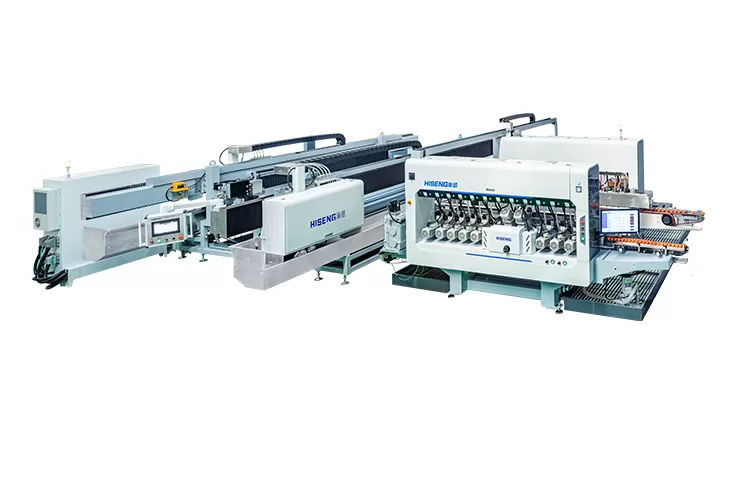

Double edger to grind the glass long sides first +Jumbo Glass Bilateral Edger to grind the glass short sides.
Double edger + Jumbo Glass Bilateral Edgers at one side.
The table can increase any size to fit production requirement.
Min glass size: 600*900mm.

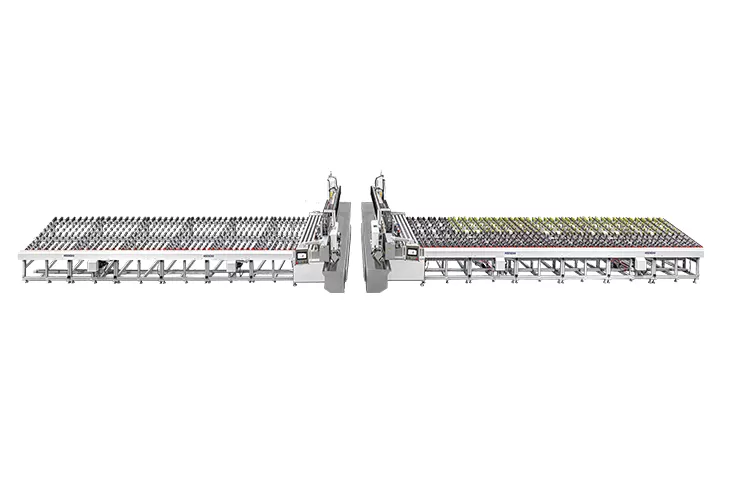

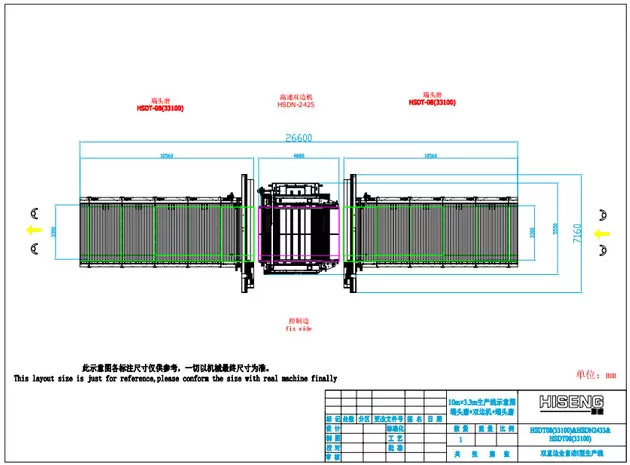

Jumbo Glass Bilateral Edger to grind one of the short side, + The double edger in the middle to grind the glass two long sides, + Jumbo Glass Bilateral Edger to grind another short side.

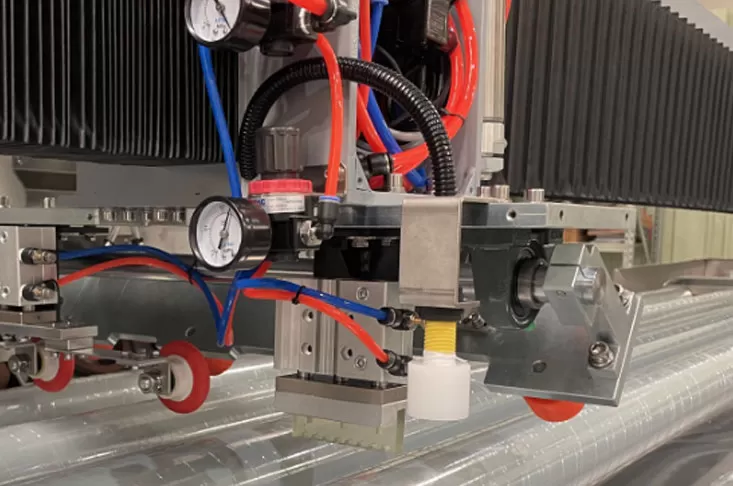

Auto measuring the glass width and thickness; Sensor for Width Measuring; Electronic Ruler for Thickness Measuring.

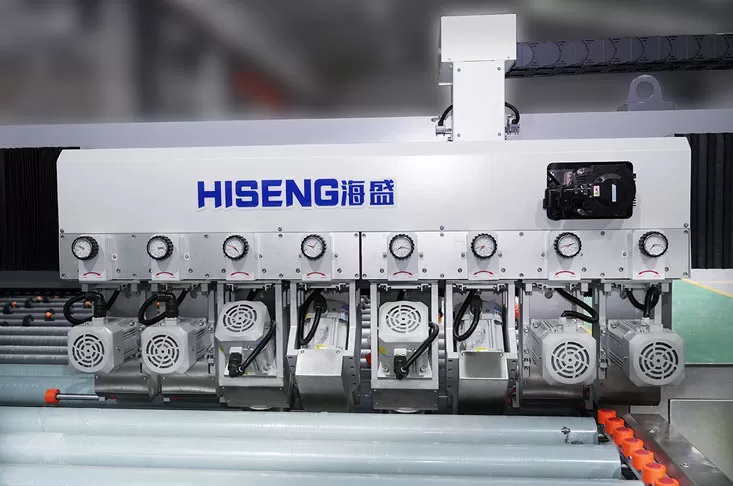

8 or 9 motors with polishing;
All servo motors control the wheels feeding;
Easy for mantaince.

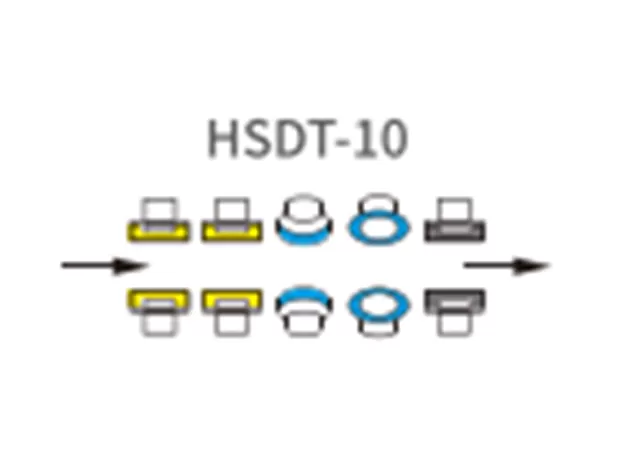

wheel No. | Name | Specification | RPM | KW |
1 | Diamond wheel（segment) | 100# φ 150x12x20x8 | 6000 | 4 |
2 | Diamond wheel（segment) | 120 # φ 150x12x20x8 | 6000 | 4 |
3 | Resin wheel （segment) | 240# φ150x12x25x12 | 4200 | 2.2 |
4 | Resin wheel （segment) | 240# φ150x12x25x12 | 4200 | 2.2 |
5 | 10S60 | φ150 | 2840 | 2.2 |
6 | 10S60 | φ 150 | 2840 | 2.2 |
7 | Resin wheel （segment) | 240# φ150x12x25x12 | 2840 | 2.2 |
8 | WEL800 | φ 150 | 2840 | 2.2 |
| Parameter Name | HSDT - 3310 Jumbo Glass Bilateral Edger | HSDT - 2510 Jumbo Glass Bilateral Edger |
| Thickness of glass | 3300 - 10000mm (Length can be extended) | 2500 - 10000mm |
| Thick of glass | 3 - 25mm | 3 - 25mm |
| Transmission speed | 3 - 30m/min | 3 - 30m/min |
| Size change speed | 30m/min | 30m/min |
| Glass Parallel Tolerance | ±0.2mm | ±0.2mm |
| Glass Diagonal Tolerance | ±0.5mm | ±0.5mm |
| Chamfer Tolerance | / | / |
| Chamfer width | ±0.3mm | ±0.3mm |
| Max Grinding on flat edge | 3mm | 3mm |
| Air required | 0.6 - 0.8mpa | 0.6 - 0.8mpa |
| Work Height | 900±20mm | 900±20mm |
| Total Power | 50KW | 50KW |
