Glass Straight Line Beveling Machine HSB-371
straight line glass beveling machine

Glass Straight Line Beveling Machine HSB-371

Glass straight line beveling edging machine is suitable for architecture, and electronic glass. It features rapid processing, high precision. With high - precision transmission, High-speed operation, stable technology, efficient production.

Get A Quote

Technical Data of Glass Straight Line Beveling Machine HSB-371

Technical Data

NO

Part Name

Specification

1

Processed glass width

Max Size:1830×2440mm

Min Size:100×100mm

2

Processed glass thickness

3-19mm

3

Glass maximum bevel width

40mm

4

Bevel angle

3-18°

5

Transmission speed

0.5m/min— 5m/min

6

Dimensions

8500mm×1500mm×2300mm

7

Total Weight

4000kg

8

Processed glass diagonal error

≤0.5mm/m

9

Voltage, power

380V/50HZ, 26KW

10

Smooth mirror surface, uniform brightness, no chipping

11

The whole vertical edging machine runs without abnormal noise

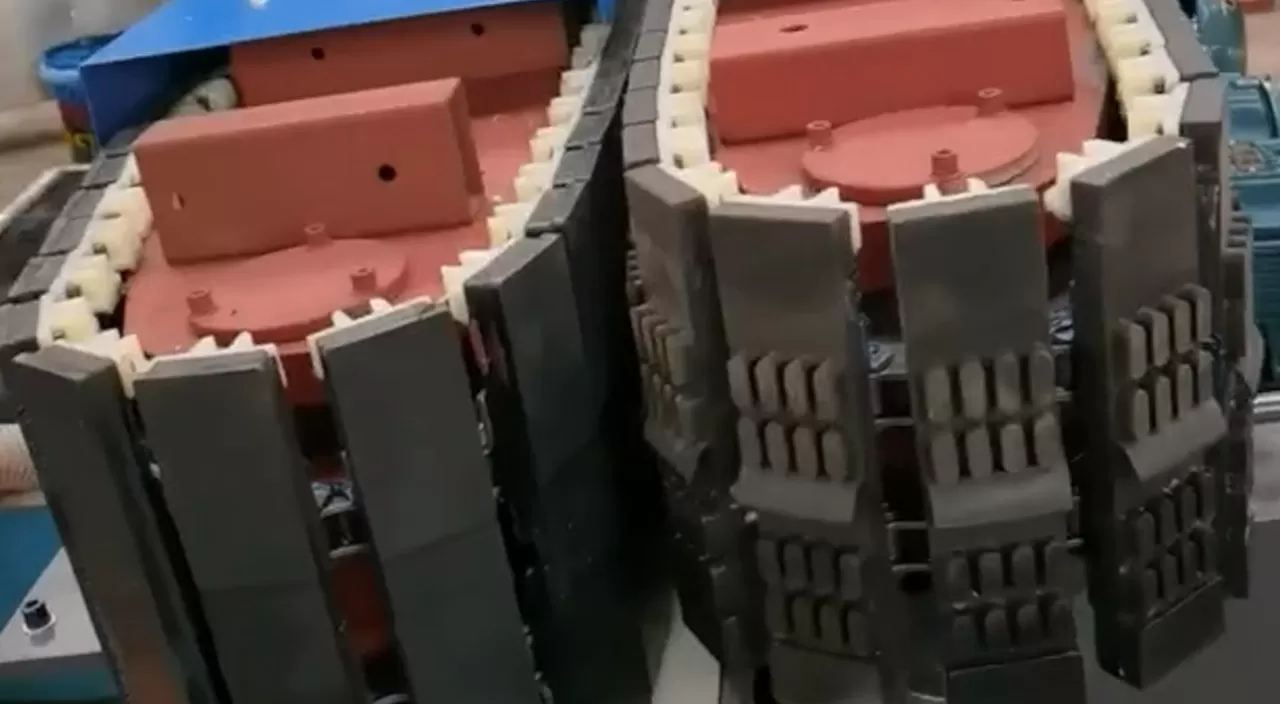

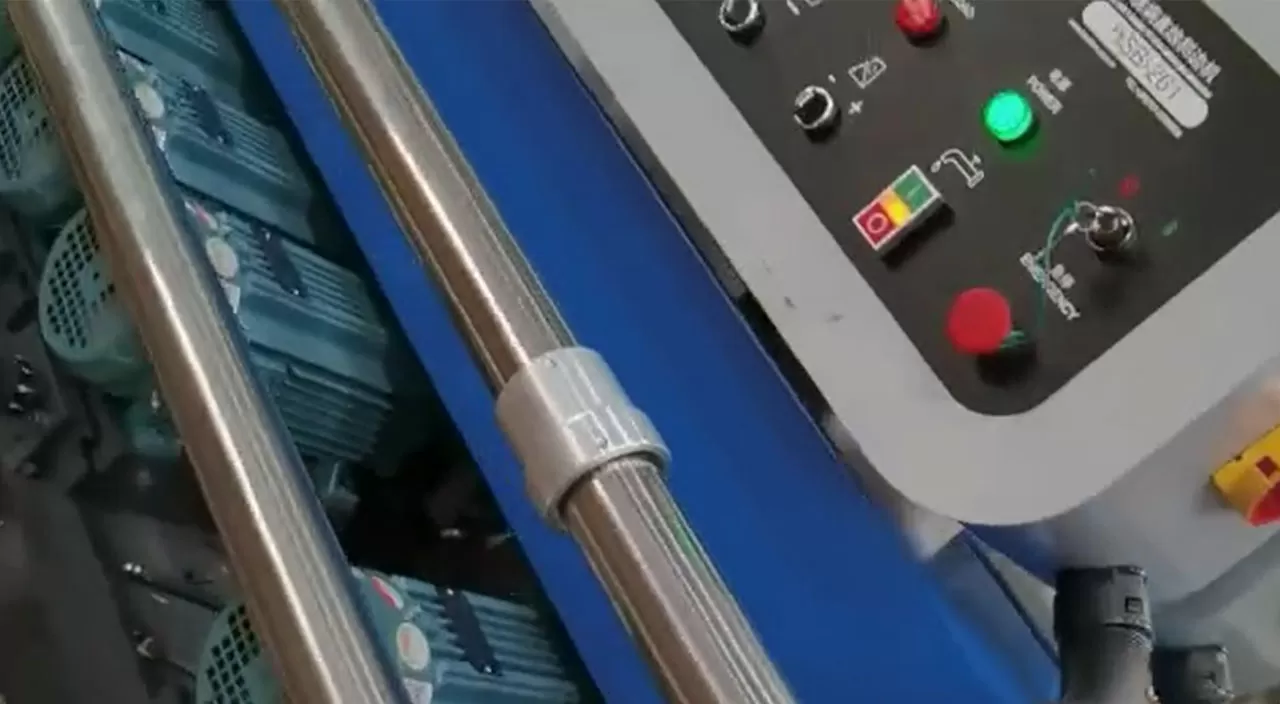

Video of Glass Straight Line Beveling Machine HSB-371

1
2
