HSBM Glass Seaming Machine can add film deletion or bottom edge grinding function according to customer requirements, suitable for door and window glass, laminated glass, wall glass and other industries glass processing, withlow cost and high efficiency for large batch Productivity.
1. High speed, Max speed: 8 pcs/min.
2. Automatic detection device, accurate positioning and high efficiency.
3. Cast rubber roller, high straightness, high speed and stable transmission, easy to maintain.
1. Two bridges/three bridges four-grinding heads.
2. Arrise + Bottom.
3. Arrise + film deletion.
4. Arrise + edge grinding+ film deletion.
5. Arrise + edge grinding+edge polishing+ film deletion.

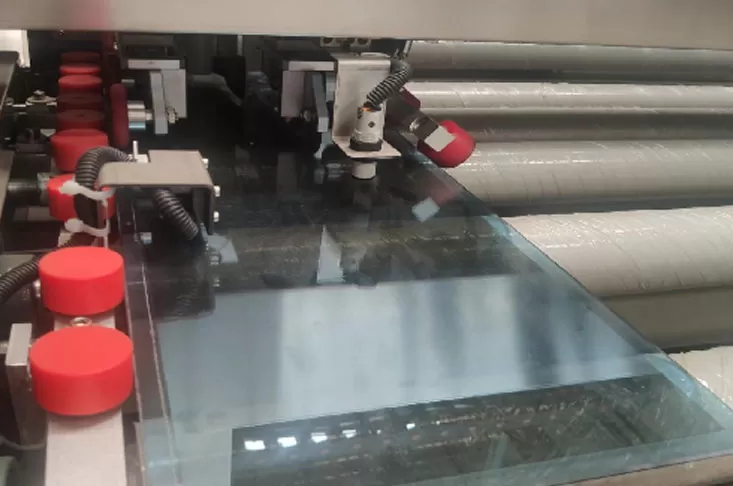

Glass front sensed by length sensor which installed on loading section of machine. Width sensor approch glass edge along the width measuring bar.

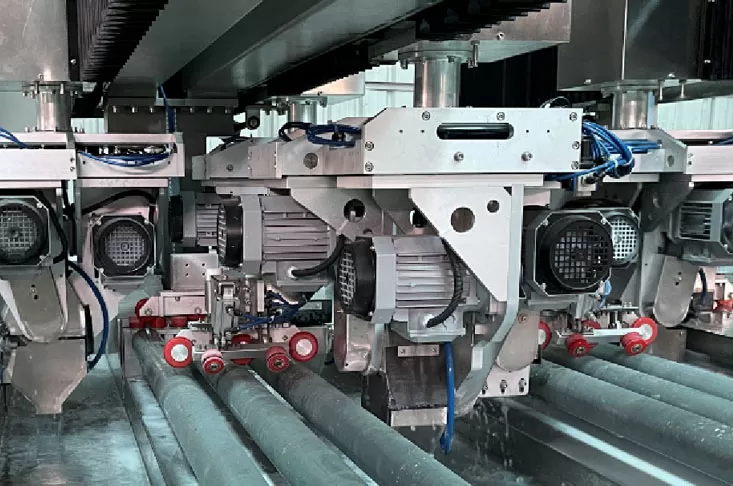

Three bridges structure; External motors and wheels, easier for maintenance.

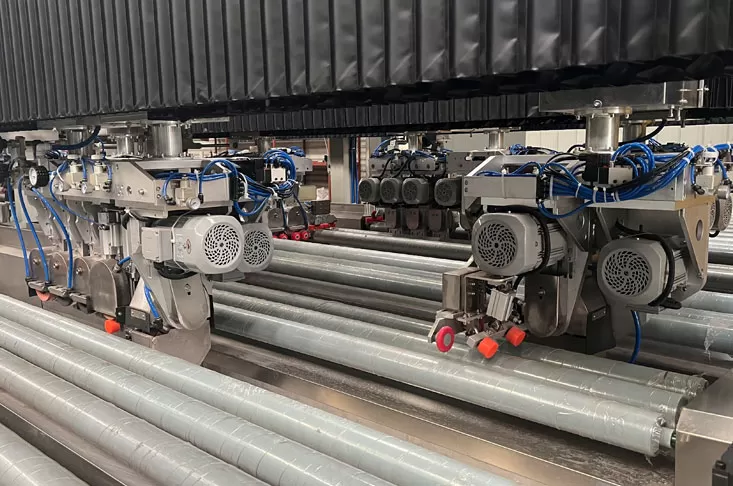

Servo motor control 3 Bridges' motors running, high precision and better synchronization, total 8 sets servo motors.
Servo motors control roller transmission, front guide grinding, middle guide grinding, rear guide grinding and two sets pressing wheels.
Four sets of motor heads with reasonable placement. Guaranteed the grinding accuracy.

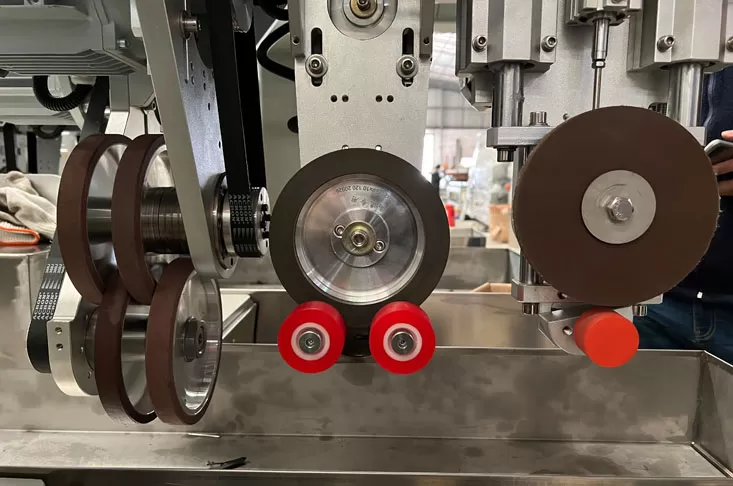

Long life grinding wheels, easy to change wheels.
